MC-315AC Stainless Steel Tube Cutting Machine
metal tube cutting machine, pipe cutting machine,steel tube cutting machine, stainless steel tube cutting machine.saw blade cutting machine,circular saw cutting metal tube cutting machine,automatic sawing machine,automatic pipe cutting machine,automatic tube cutting machine.China circular saw cutting machine.
MACHINE FEATURE
1. tube material:steel tube/stainless steel tube
2. machine head can be adjusted to 45degree
3.automatic water cooling makes long lifetime of saw blade
4.automatic clamping and automatic cutting.
| Key Specifications /Model | MC-315AC | Remarks | ||
| blade saw diameter | 300mm/315mm | |||
| 90º(mm) | 45°(mm) | |||
| 口 | 70mm | 65×65mm | ||
| ○ | Φ80mm | Φ70mm | ||
| ● | Φ30mm | 25mm | ||
| machine size | 500mm × 500mm × 1300mm | |||
| Weight | 200kg |
Heli SEMI AUTOMATIC STEEL PIPE CUTTING MACHINE(MC-315AC)
1. Pipe Material: Steel pipe/ Stainless Steel pipe.
2. Cutting Method:Saw Blade Cutting.
3. Saw Blade Diameter: 275mm/300mm/315mm
4. Automatic Clamping+Automatic Cutting.
5. Can cut round pipe as well as square tube.
6.Saw blade material:High Speed Steel
Carbon Steel Tube Cutting Machine

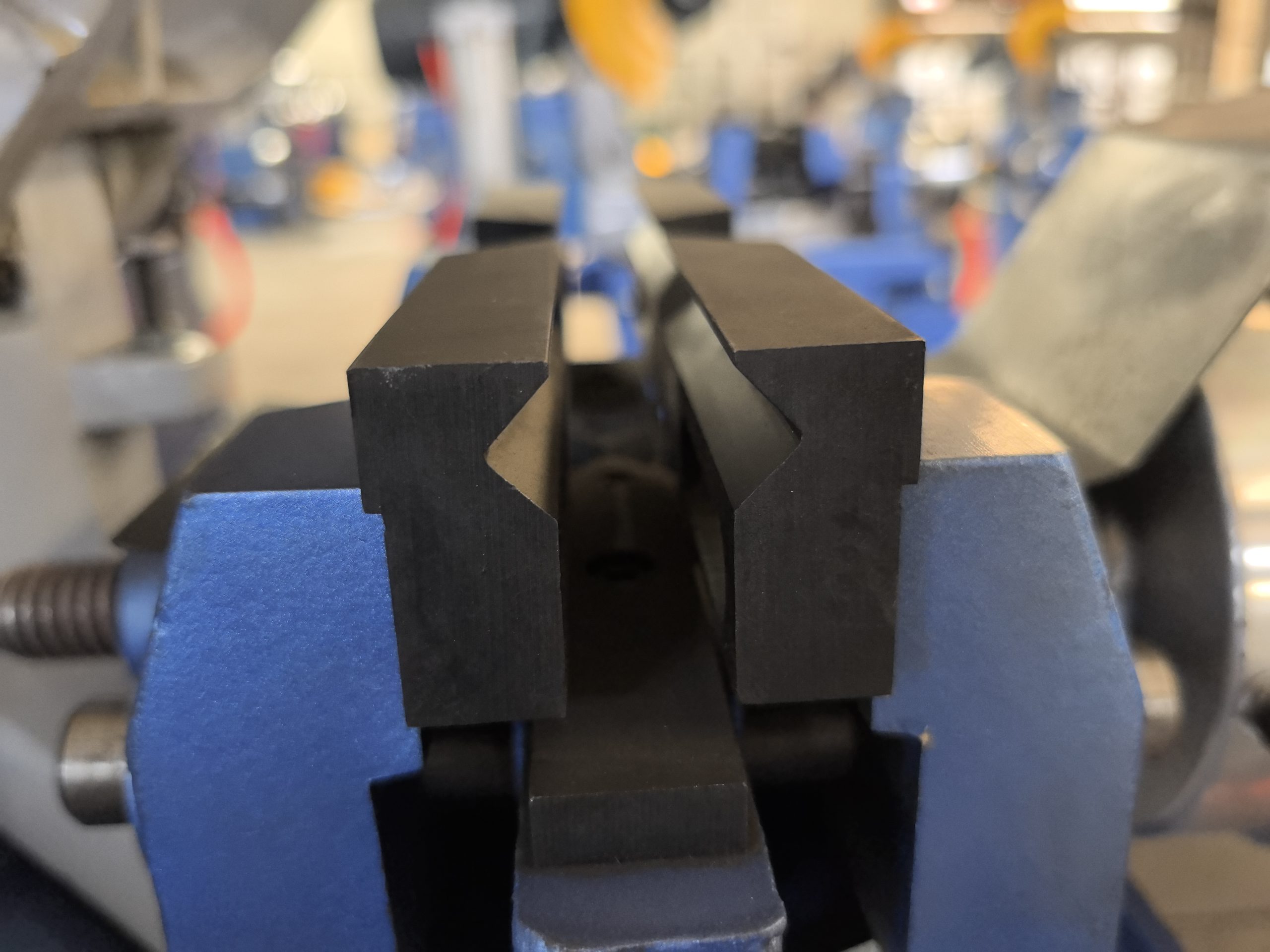

V shape clamping tool can be adjusted according to OD of tube.

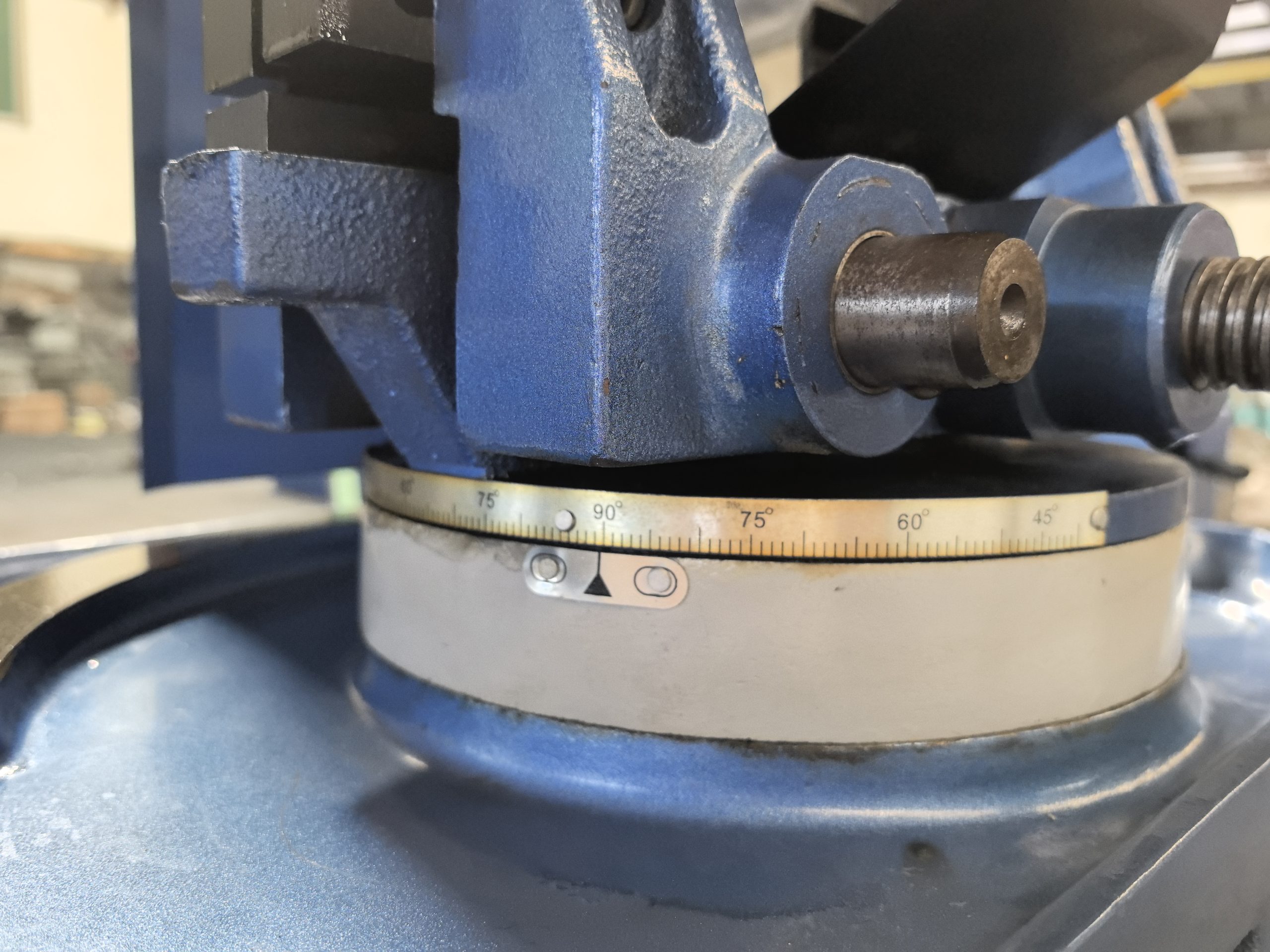

Can meet different cutting angle

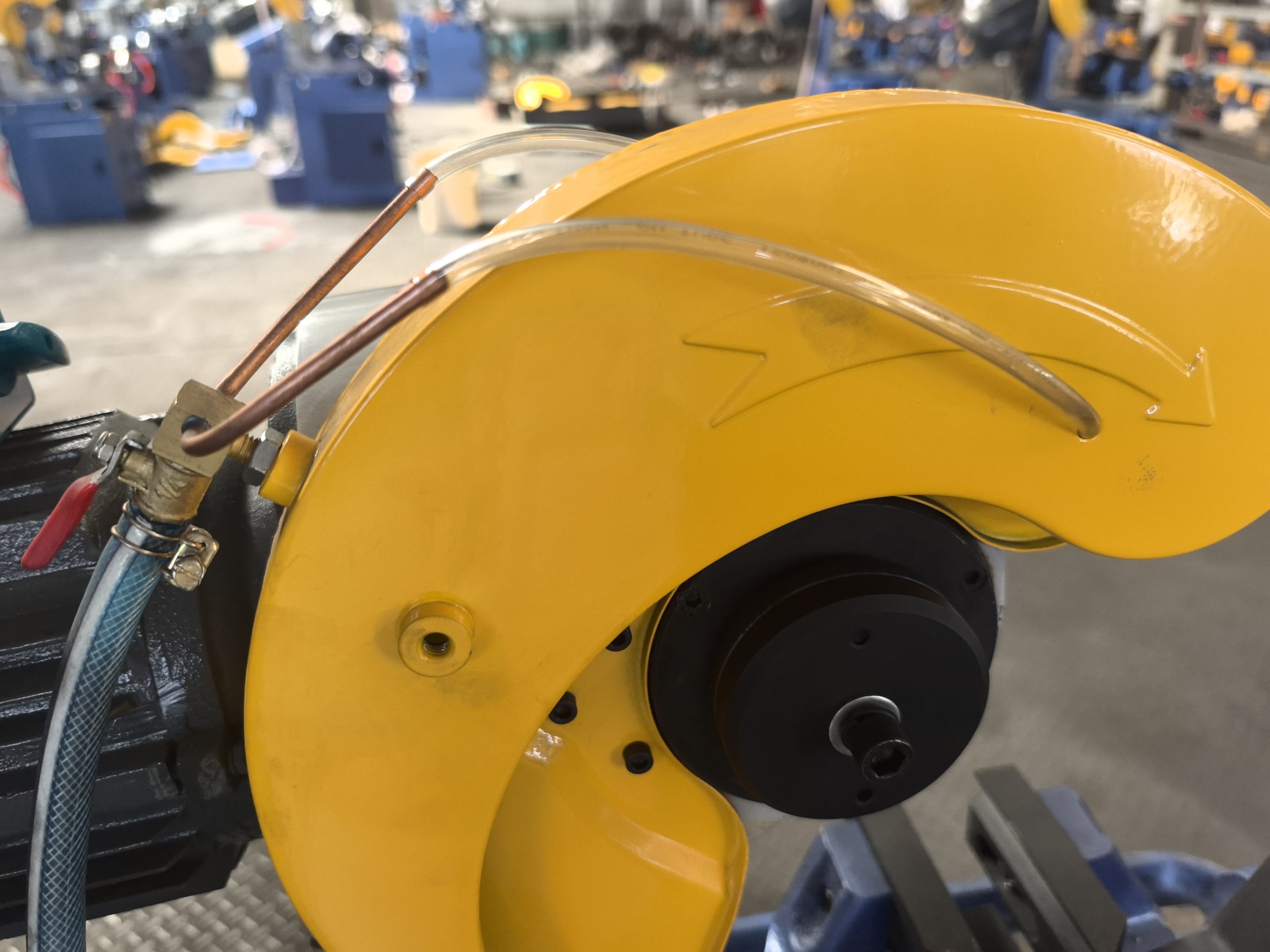

Automatic water circulation cooling

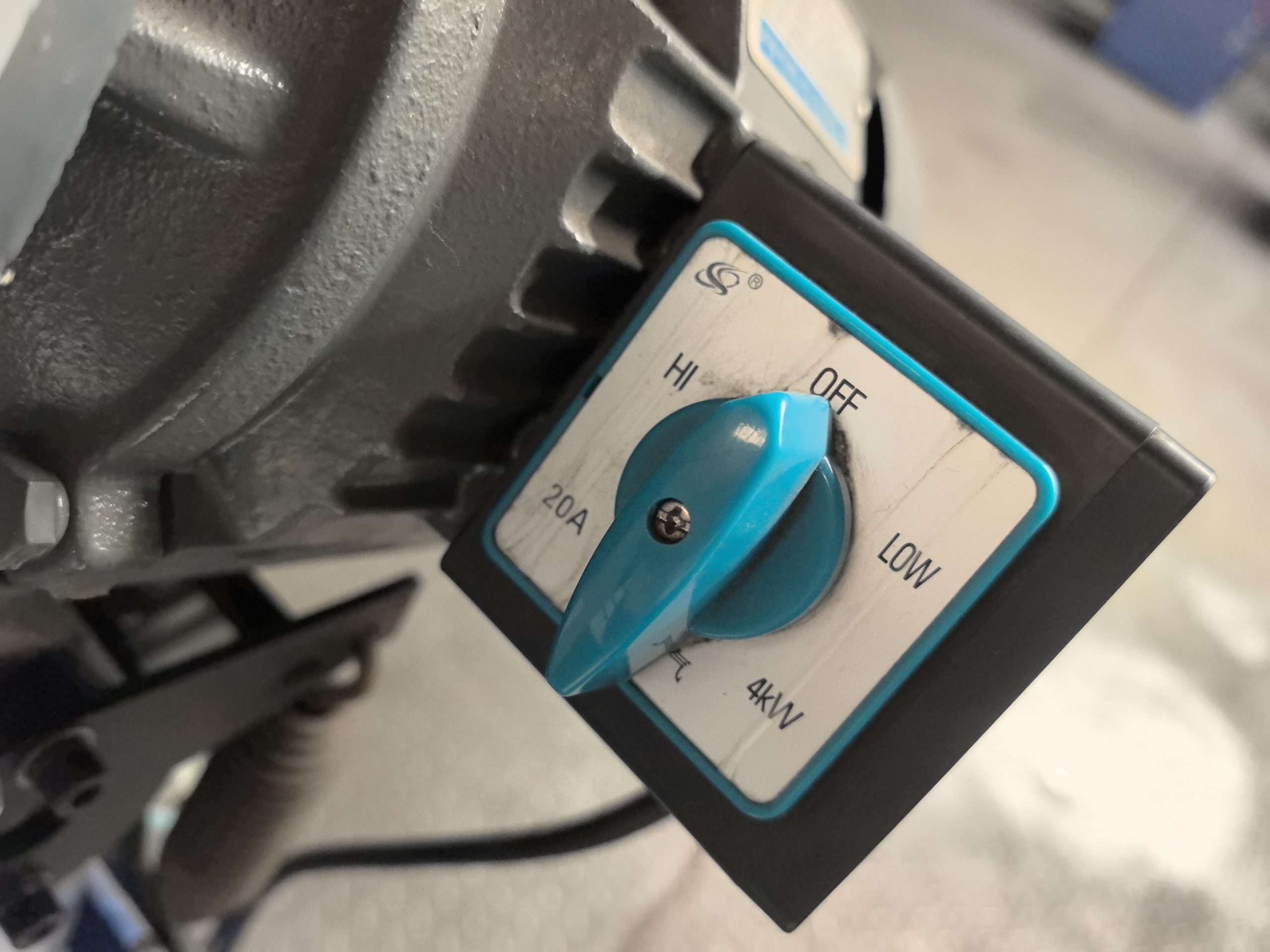

Two speed for option,according to different tube material and wall thickness
