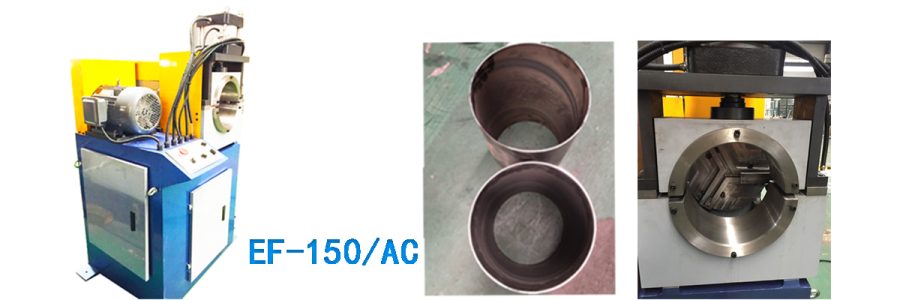

Pipe Chamfering Machine(EF-150AC)
-
Direct supply from the manufacturer
- Phone：+86-15150208940
- E-mail：info@hlbender.com
Detail
| Specification/Model | EF-150/AC |
| Main motor power | 2.2kwx6P |
| Main axis speed | 120ml/min |
| Processing diameter | 20-150mm |
| Processing external angle of the rod | 9-50mm |
| compressed air | 6-8GS/cm2 |
| standard configuration |
one set clamping die a standard cutter head |
| Size | 890mmx 850mm x 1300mm |
| Weight | 480kg |
AUTOMATIC STEEL PIPE CHAMFERING MACHINE

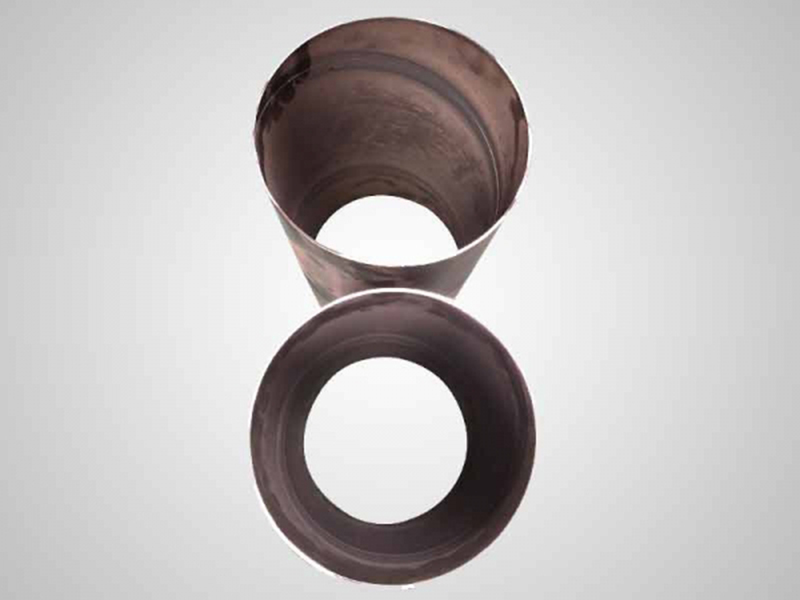

Heli pipe chamfering machine Evenly chamfers the inside, outside and face of the tube simultaneously. Different rotation speeds for various materials and requirements. 2 Step chamfering process: First speed: Fast approach for time saving. Second speed: Infinitely adjustable speed for smooth finish. workble for steel tube, stainless steel,aluminum tube .copper tube
Heli chamfering machine is Specialized in finish chamfering and trimming surface of the interior/exterior angle of circular tube and round bar end surface once quickly and accurately.
- The central line of the processing object and the cutter is precise. Special design and standardization of the blade make adjusting blade easily.
- Manual nest, automatic feeding, clamping and blade feeding and backing.
- Only changing the cutter and adjusting the trip holder can make the machie available for different size of the workpiece.
- Suitable materials: Stainless steel, Steel, Iron, Copper, Aluminum, pipe and bar
- Processing speed: 3-6 second/piece
