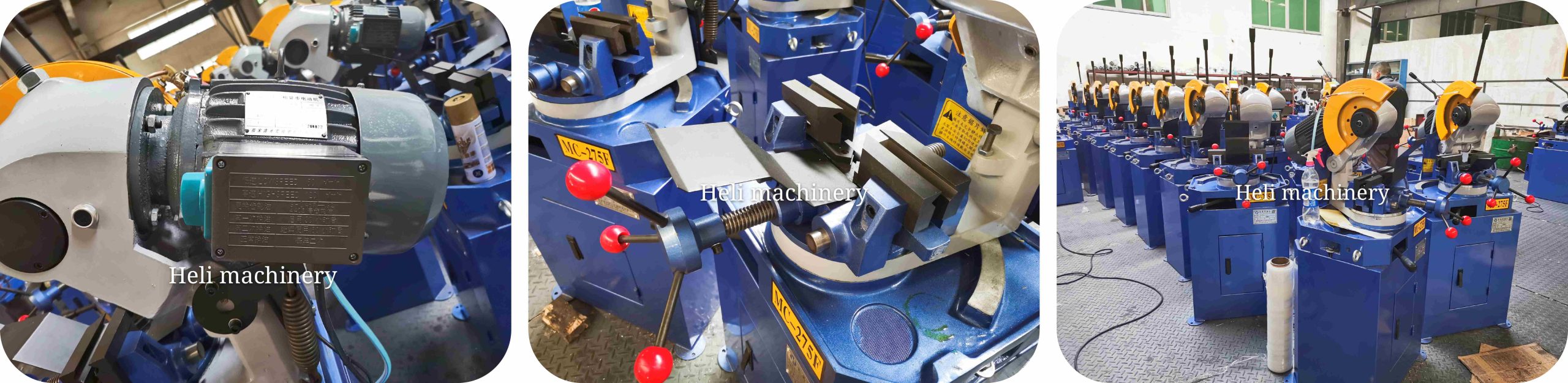

MC-275F manual stainless steel tube cutting machine
1.MC-275F is manual cutting machine, which can cut steel pipe and stainless steel pipe from OD10mm to 60mm
2.Adjust the clamping capacity by spinning the handwheel manually.
3.cutting pipes by pressing handle manually.
4.two cutting speed. one is 80r/m. the other one is 120r/m high speed.can choose the suitbale speed according to your need.

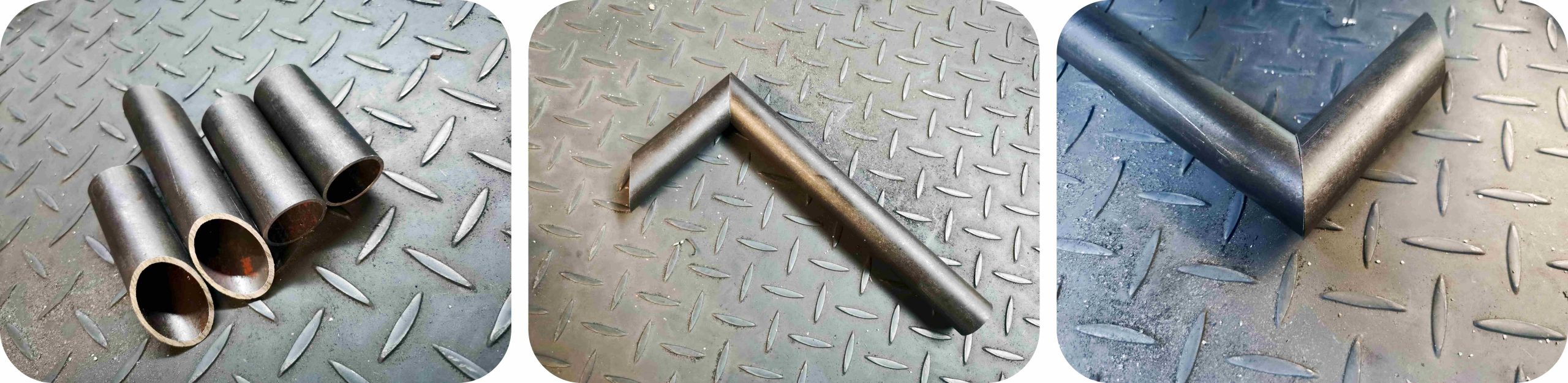

5.Cutting angle can be adjusted, it can cut 90degree as well as 45degree
6.one year quality warranty time.
7.use high speed steel saw blade.
8.saw blade OD :275mm.300mm.315mm
9.automatiic water circulation cooling system
| Key Specifications /Model | MC-275F | Remarks | ||
| blade position | 90 ° (mm) | 45 ° (mm) | ||
| □ | 60 * 60 | 45 * 45 | ||
| ○ | Φ60 | Φ50 | ||
| ● | Φ15 | Φ10 | ||
| ■ | 10* 10 | 10* 10 | ||
| Dimension | 0.55x.55x1.4m | |||
| Weight | 200kg | |||
| saw blade diameter | 275mm/300mm | |||
| motor power | 1.2/2/0kw |
Stainless Steel Tube Cutting Machine (MC-275AC/275F/315AC/315F)
