Detail

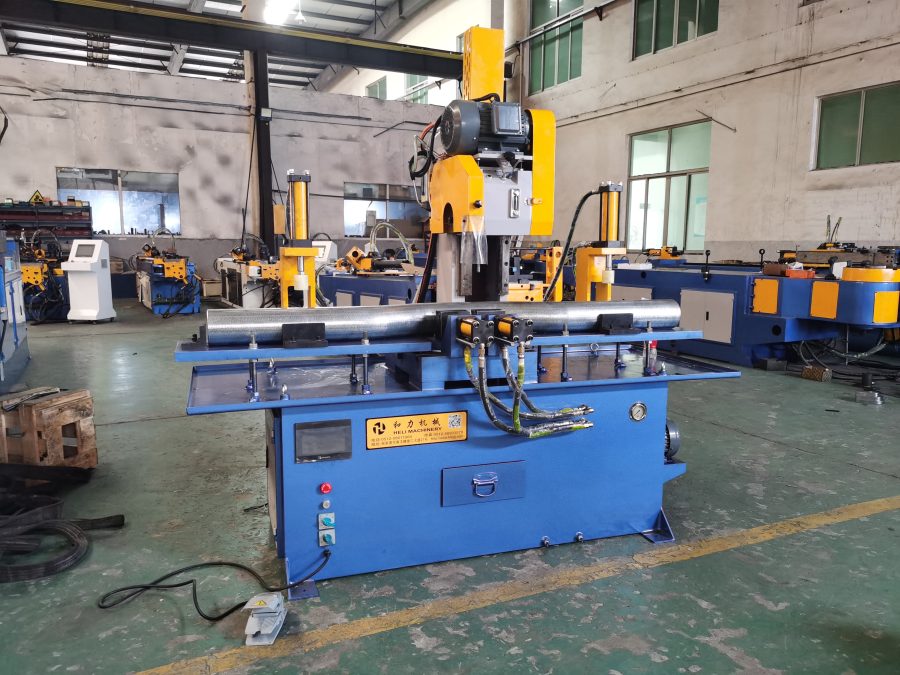

Hydraulic Stainless Steel Tube Cutting Machine (HVS-425AC)
1.Suitable for cutting carbon steel tube and stainless steel tube with thick thickness.
2.Both 90degree cutting and 45degree cutting are avaliable.
3.Special type clamping die enable strong and secured holding of work-piece.
4.Automatic recycling of the coolant ensures smooth cutting surface as well as long life-time of saw blade
5.Centralized peocessing of cutting sawdust makes the machine maintenance be easy.
| Key Specifications /Model | HVS-425AC | ||
| OD of blade position | 400mm/425mm | ||
| Cutting angle | 90 ° (mm) | 45 ° (mm) | |
| Square tube | □ | 100x100mm | 90mm |
| Round tube | ○ | Φ120*4mm | Φ90mm |
| Rond bar | ● | Φ32mm | 25mm |
| machine size | 0.9x1.2x1.90m | ||
| Weight | 1100kg |
Carbon steel tube Cutting machine
1.This machine is suitable for cutting carbon steel tubes, stainless steel tubes and other thick-walled steel tube, as well as solid bars and other special materials.
2.The machine support upright cutting at 90degree and oblique cutting at 45degree.
3.The chute can automatically supplies itself oil for lubrication, ensuring smooth operation and a long life span for the machine
90degree cutting&45degree cutting
HELI MACHINERY
Hydraulic
OD127mm
Wall thickness:3mm

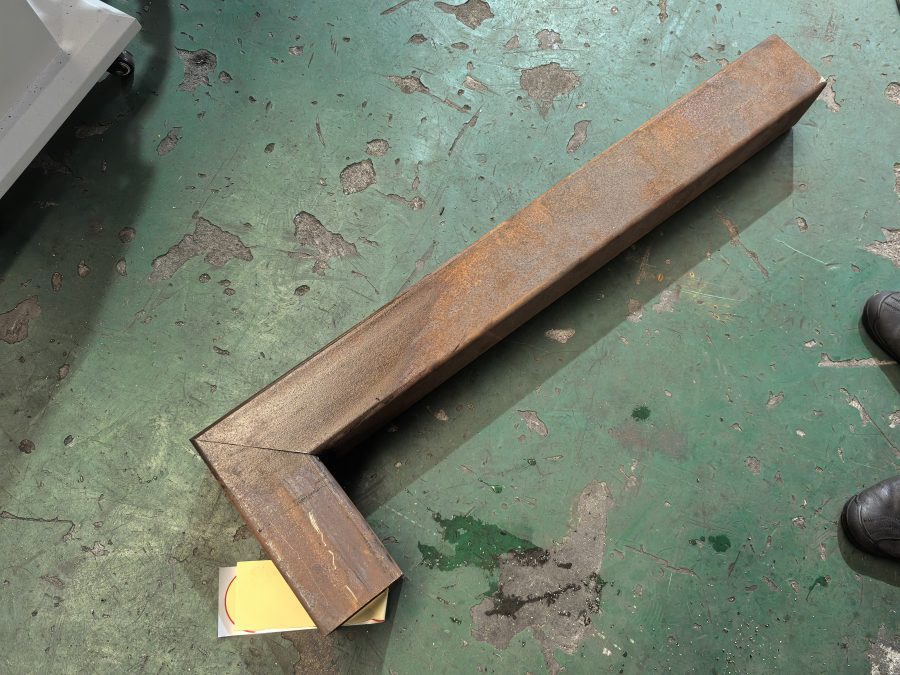

45degree square tube cutting
Rectangle tube cutting
