Hydraulic Pipe End Forming Machine(TM-60)
-
Direct supply from the manufacturer
- Phone：+86-15150208940
- E-mail：info@hlbender.com
Detail
1) NC Control Unit: Easy Operation and Maintenance
2) Suitable for the shrinking of various metal pipes with different material and different shape
3) Equipped with emergency stop device. Both manual and automatic operations are available
4) Shrinking stroke is set according to customer’s need with no minimum work piece length

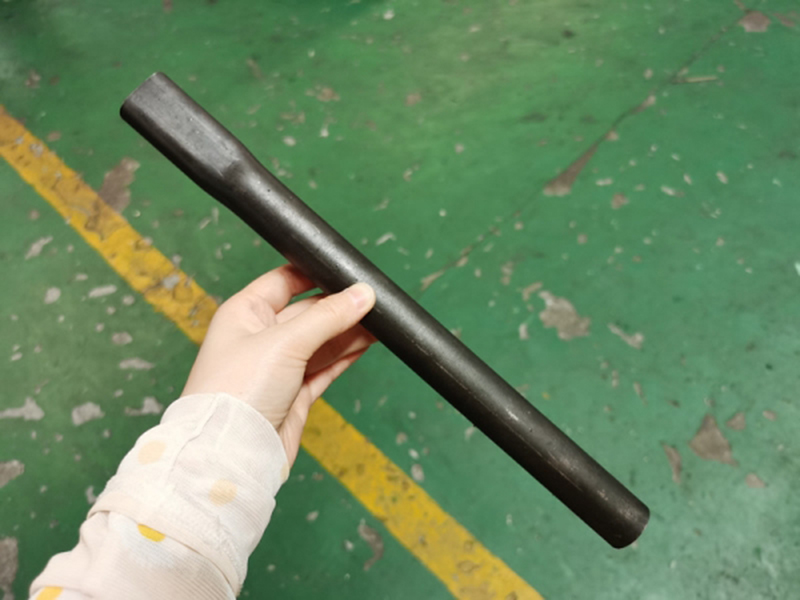

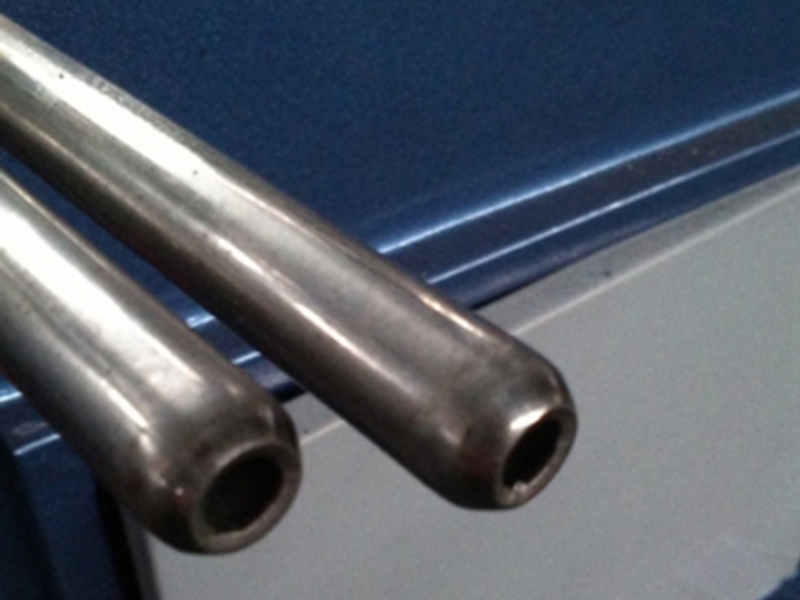

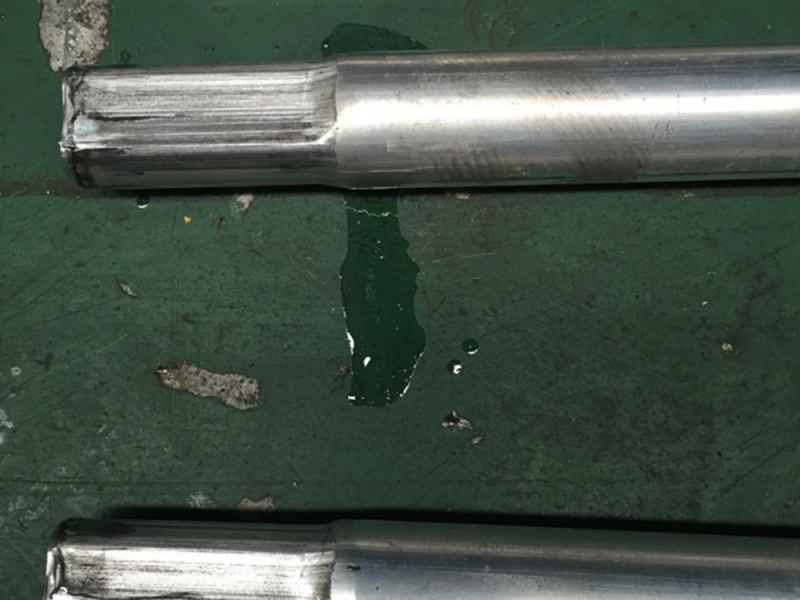

5) Forming shapes can be convex, concave, sectional, long 7 flat, square, V-shaped, open elbow and flat elbow. The design of the tooling varies with work piece and customers' requirements
| item | Feature and specification |
| 1.model | TM-60/ |
| 2.Max progress capacity | ￠60×2mm |
| 3.maximum working stroke | 100mm can be increased |
| 8Motor power | 5.5kw |
| 9Hydraulic control method | Magnetic valve |
| 10cooling system | Water cooling |
| 11.control method | Micro computer |
| 12weight | 800kg |
| 13.machine size（cm） | 220×72×135cm |
