CNC Pipe Bending Machine (SB-38CNC-3A-1S)
-
Direct supply from the manufacturer
- Phone：+86-15150208940
- E-mail：info@hlbender.com
Detail
CNC AUTOMATIC STEEL PIPE AND TUBE BENDING MACHINE
Heli Automatic tube bending machines are widely used in a variety of areas of application such as automotive,motorcycle, aerospace, furniture, industrial vehicles, fitness equipment and other industries.The advantager of Heli cnc automatic steel pipe bending machine is that this machine can ensure the accuracy of bending pipe and achieve mass production at the same time, and help customers improve production efficiency.3D simulation program makes the operation easier. Heli cnc tube bending machine can bend all kinds of metal tube: steel pipe/stainless steel/copper/ aluminum tube .......round tubes/square tubes /rectangle tubes/oval tubes are workable for Heli cnc tube bending machine

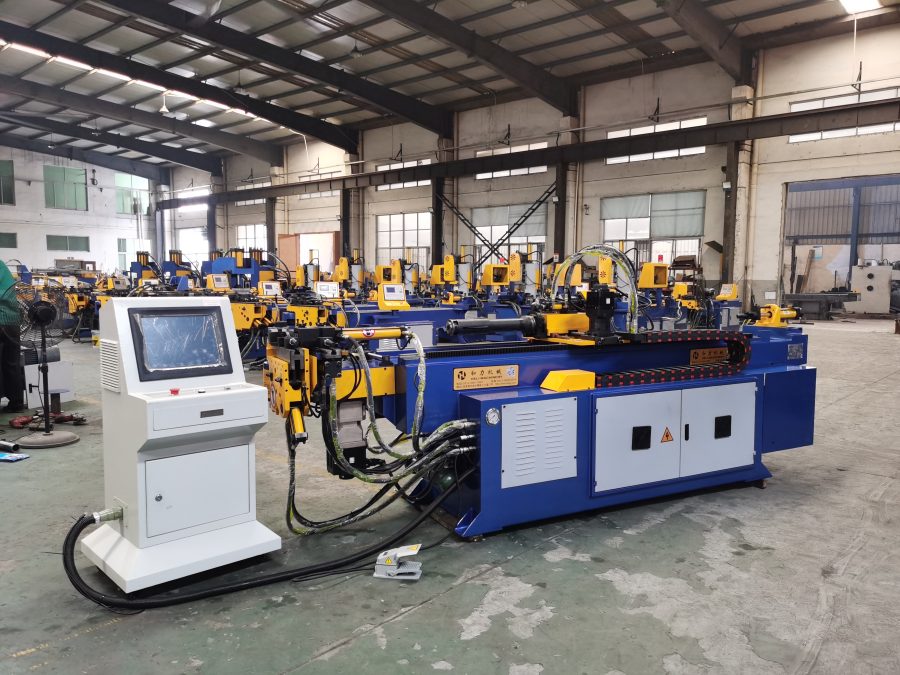

CNC Pipe Bending Machine
The Maxi bending capacity is OD38x2mm wall thickness .
maxi CLR which 38cnc tube bending machine is 200mm.
bending angle can be set from 0 to 180 degree ,
mandreal supprt length is 2000mm.

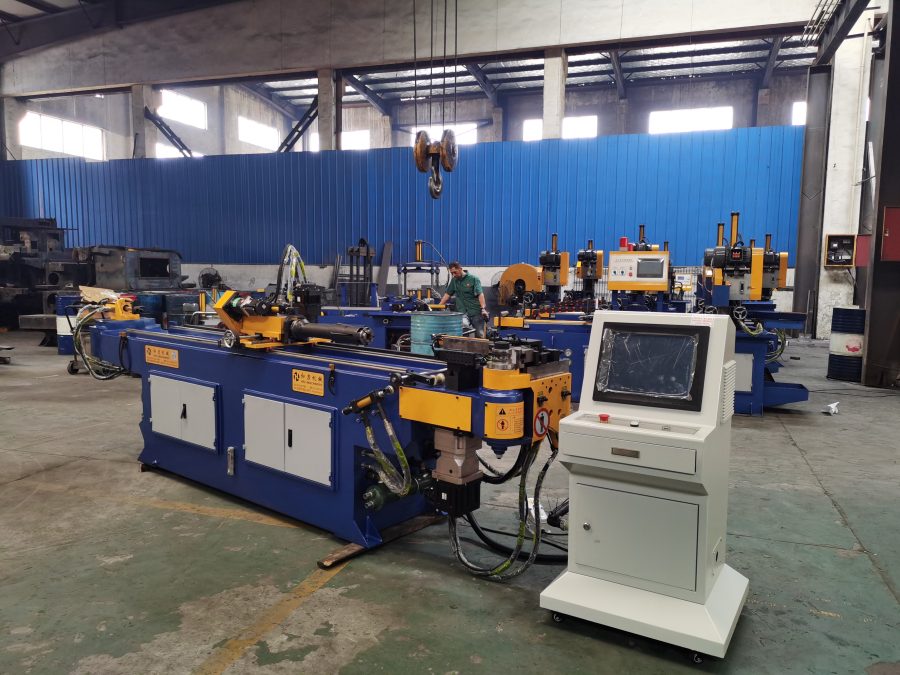

CNC Pipe Bending Machine
3A1S means 3 servo motors and 1 stack tooling .

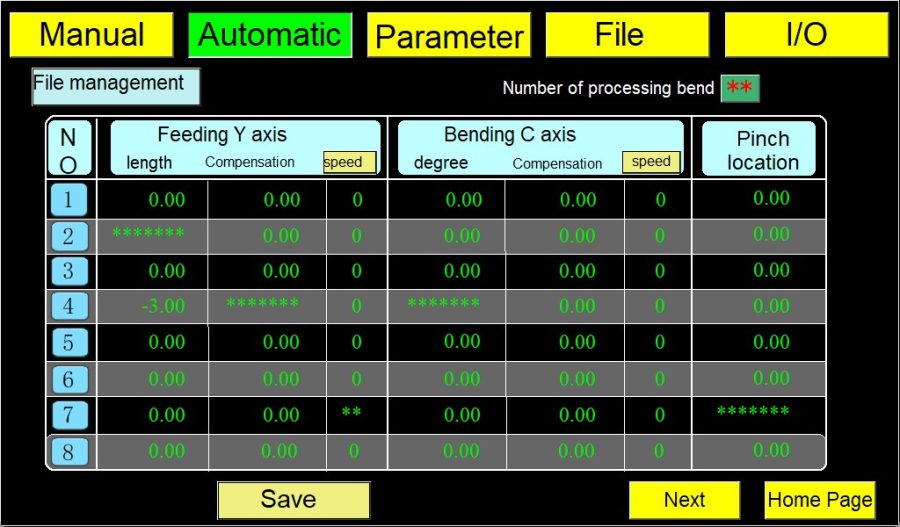

CNC Pipe Bending Machine Program
| Type | SB-38CNC-2A-1S | SB-38CNC-3A-1S | SB-38CNC-4A-2S(with push bending ) |
| Max OD (steel pipe) | Φ38×2mm | Φ38×2mm | Φ38×2mm |
| maxi bending radius (Steel pipe) 1.5×OD | 200mm | 200mm | 200mm |
| maxi pipe OD (ss pipe) | 25×2mm | 25×2mm | 25×2mm |
| maxi bending radius 2.0xOD (SS pipe) | 200mm | 200mm | 200mm |
| Max mandrel support length | 2000mm can be increase according to customer's option | 2000mm can be increase according to customer's option | 2000mm can be increase according to customer's option |
| bending angle | 0-180° | 0-180° | 0-180° |
| Pipe number of files can be set into the program | 800 unit | 800 unit | 800 unit |
| rotation angle | 360 degree | 360 degree | 360 degree |
| pipe material | steel pipe, stainless steel, copper pipe, aluminum pipe, and multiple-unit tube | steel pipe, stainless steel, copper pipe, aluminum pipe, and multiple unit tube | steel pipe, stainless steel, copper pipe, aluminum pipe, and multiple-unit tube |
