CNC Automtaic Aluminum Profile Cutting Machine

CNC Automtaic Aluminum Profile Cutting Machine

  •

Phone:+86-15150208940
E-mail:info@hlbender.com

Detail



CNC Aluminum profile cutting machine is specifically used for cutting aluminum tube, aluminum profile and copper tube due to soft material,which need high speed cutting to prevent the scraps stuck on circular saw blade.

1.the hidden saw blade makes the cutting be safe. 2.The treadle-type switch allows automatic swaging and sawing. 3.Automatic oil injection leaves no burrs on the cut surface,therefore, the saw blade is more durable 4.Sawing of a single piece and simultaneously of multiple pieces are both possible ,hence applicable for production at both a small and a large amount.

Model

HWJ-L455

Cutting angle

90 degree

Feeding method

Servo motor

Servo motor

1kw

Maxi feeding length

1500mm can customized

Maxi cutting width

250mm

Maxi cutting thickness

125mm

Speed of the spindle

3500PRM

Saw blade size

405*32mm*100t

Cutting speed

10-15cycle /min

Height of the working table

850mm

motor

3kw*2

Air pressure required

5-6kw/cm2

Machine dimension

2.2*0.8*1.2mm

weight

1000kg

CNC Automtaic Aluminum Profile Cutting Machine

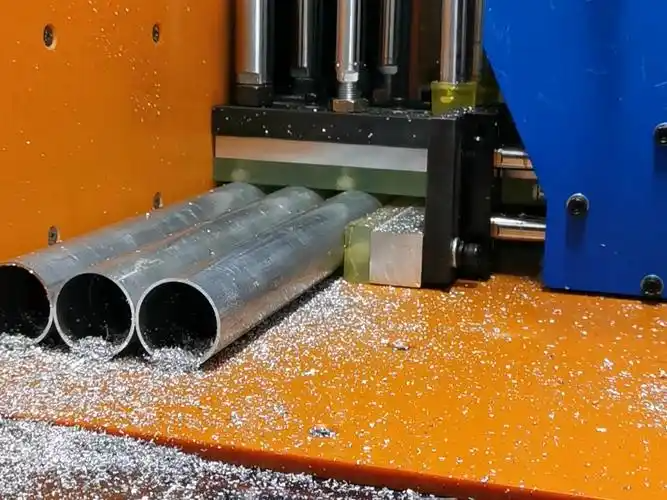

Aluminum profile cutting

CNC Automtaic Aluminum Profile Cutting Machine1
