CNC Fully Automatic Tube Cutting Machine(HVS-425FA-DR)

CNC Fully Automatic Tube Cutting Machine(HVS-425FA-DR)

  • This series of metal tube cutting machine is a fully automatic metal circular saw machine driven by hydraulic system, it is suitable for cutting larger diameter pipes, which realizes automatic feeding, automatic pipe cutting, and can automatically set the length of the pipe. One person can operate many sets of this kind of machine, which greatly improves production efficiency.

Phone:+86-15150208940
E-mail:info@hlbender.com

Detail

Automatic Feeding Pipe& steel tube Cutting Machine(HVS-425FA-DR)

1.Automatic feeding, automatic clamping
2.Automatic feeding controlled by servo motor
3.can set different feeding length when cutting one pipe, such as , the first feeding length is 50mm. Second feeding length is 200mm
4.the standard maxi feeding length is 1500mm at one time.
5.has pipe pulling function at last cutting, it can reduce the waste of material
6.No material automatically shut down
7.Automatic cooling fluid circulation, to ensure a smooth work piece section.
8.Adopt to saw blade cutting method which maks cutting surface smooth and no burr.
9.Equipped with electrical cooling pump and a large coolant tank to ensure the best working temperature on the 10.saw blade and workpiece, as well as a smooth cutting surface and longer blade life
11.Machine head can be swiveled in either direction at various degrees for miter cutting, providing high precision in cutting angle accuracy
12.Length stopper is standard with adjustable length gauge.
Key Specifications /ModelHVS-425FA-DR
saw blade ODcenter hole diameterȻ355mm/Ȼ400mm/425mm
Center hole of saw bladeȻ32mm
 90 °
 90× 90mm
 Φ120*4mm
 Φ40
servo motor1.0kw
hydraulic motor2.2kw
main motor4kw
range of "V" cross clamping dieφ 16mm-φ 100mm
speed50 or 100/min double speed
machine size3.2mm × 1.2m × 2.0m
machine Weight1000kg

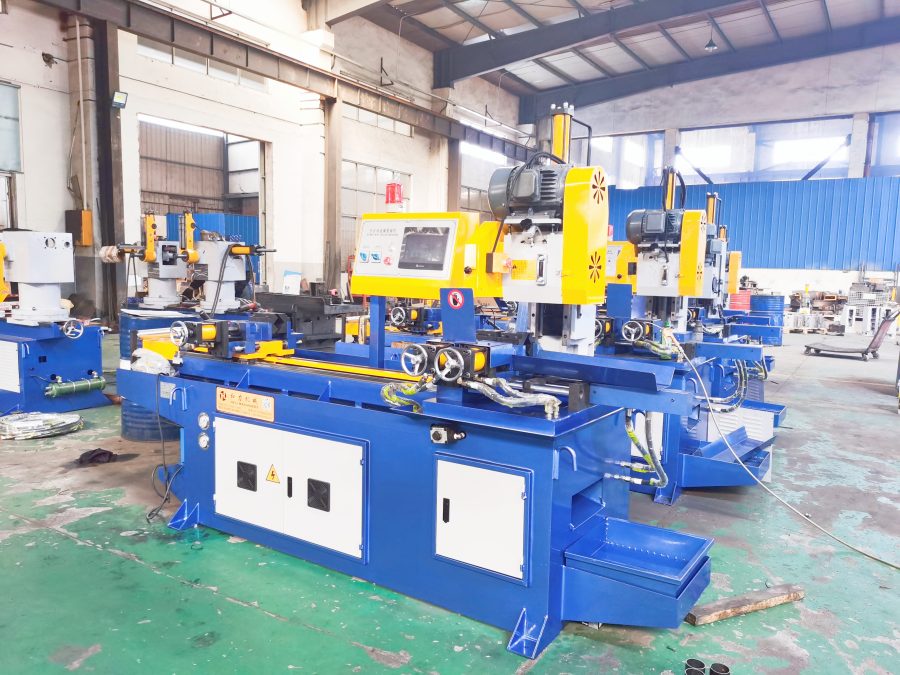

CNC Fully Automatic Tube Cutting Machine(HVS-425FA-DR)
CNC Fully Automatic Tube Cutting Machine(HVS-425FA-DR)1

Samples of 90degree cutting &45degree cutting

CNC Fully Automatic Tube Cutting Machine(HVS-425FA-DR)2

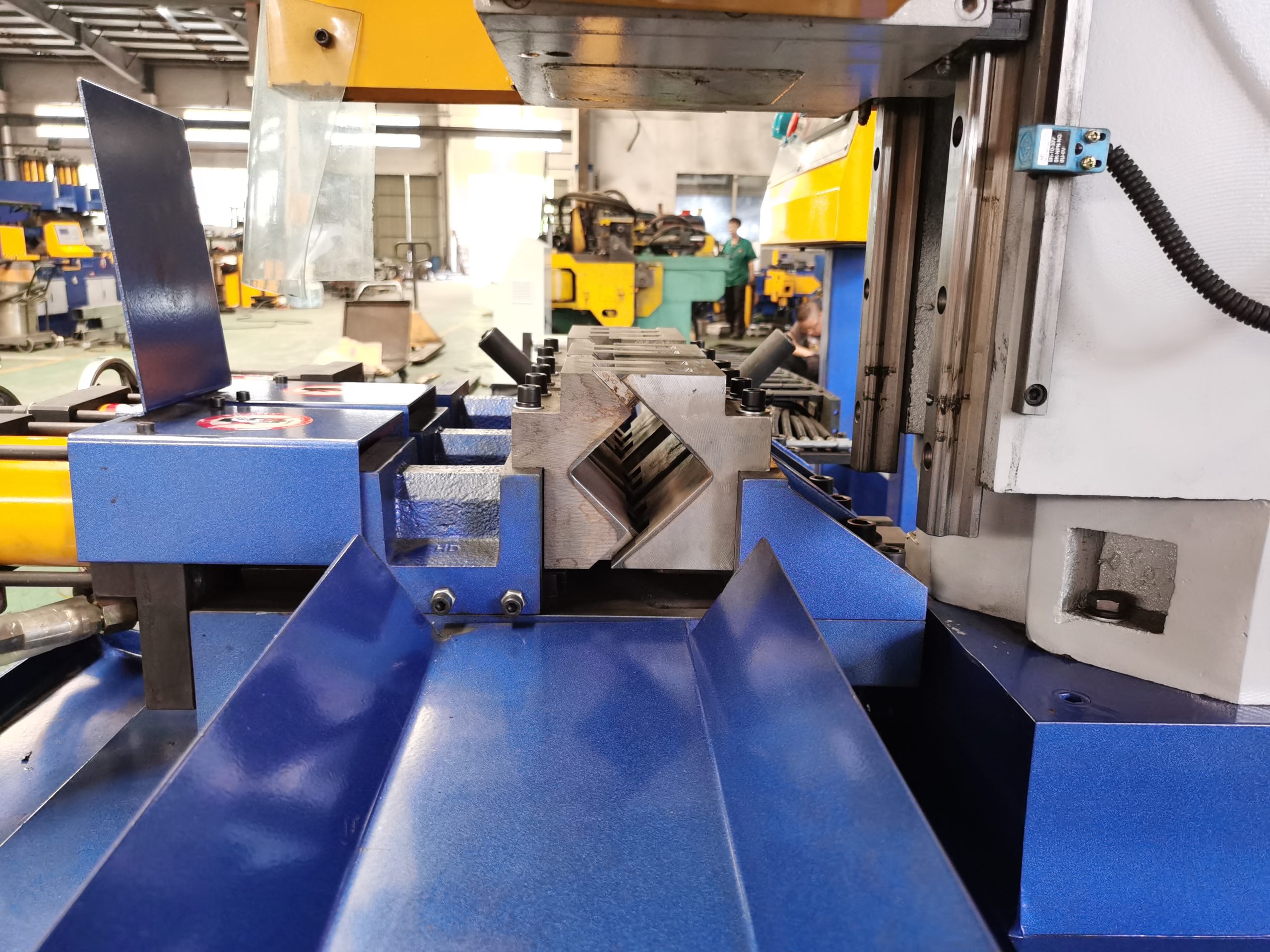

SPECIAL CLAMPING DIE

CNC Fully Automatic Tube Cutting Machine(HVS-425FA-DR)3

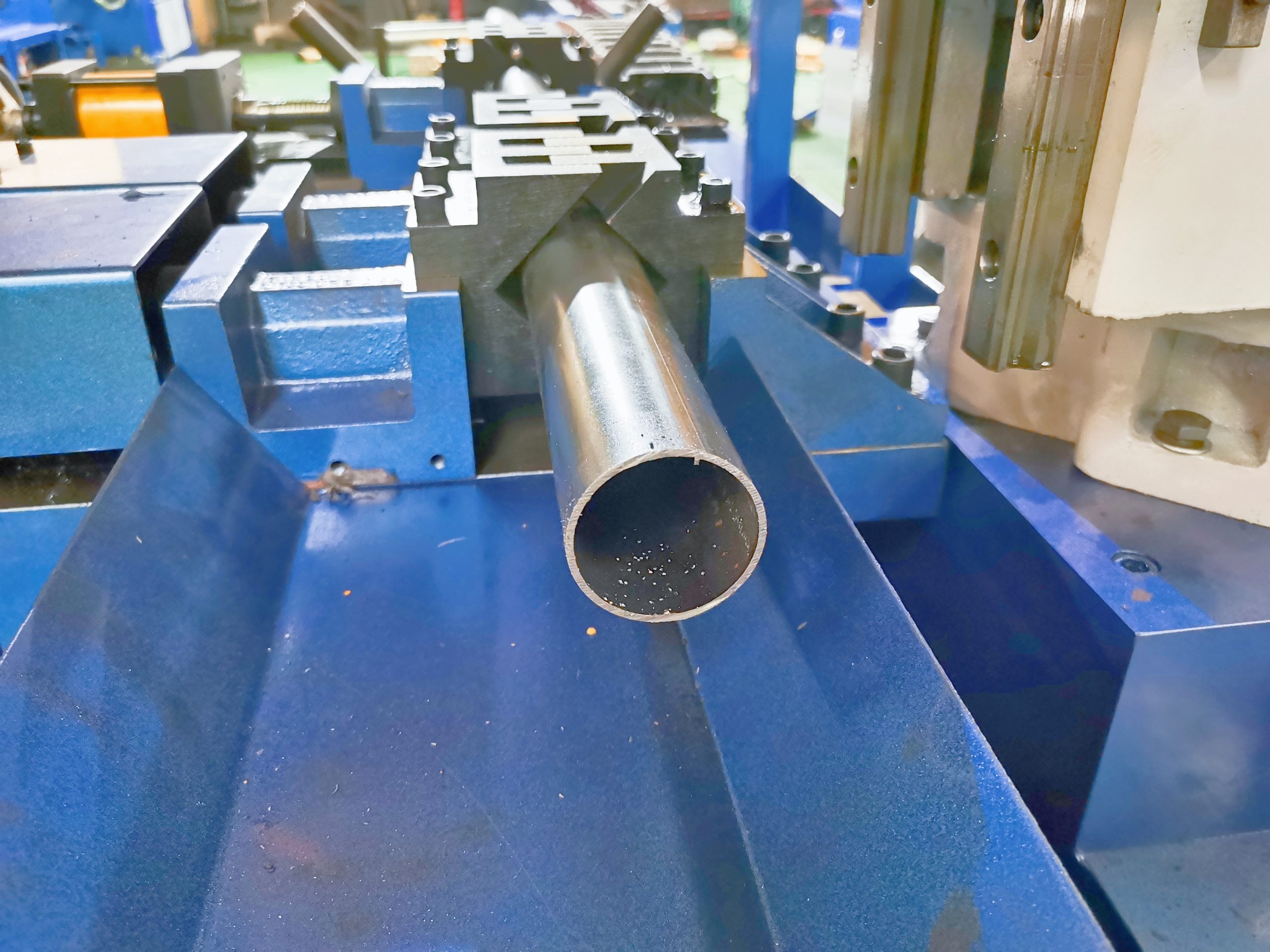

ROUND TUBE CUTTING
